High Electricity Bill And Weak Cooling: Outdoor Unit Undersized

• •Concern: Multiple service visits had already been paid for with no lasting improvement. Full system replacement was being considered
• •Key check: Checked model nameplate ratings against system configuration and load test

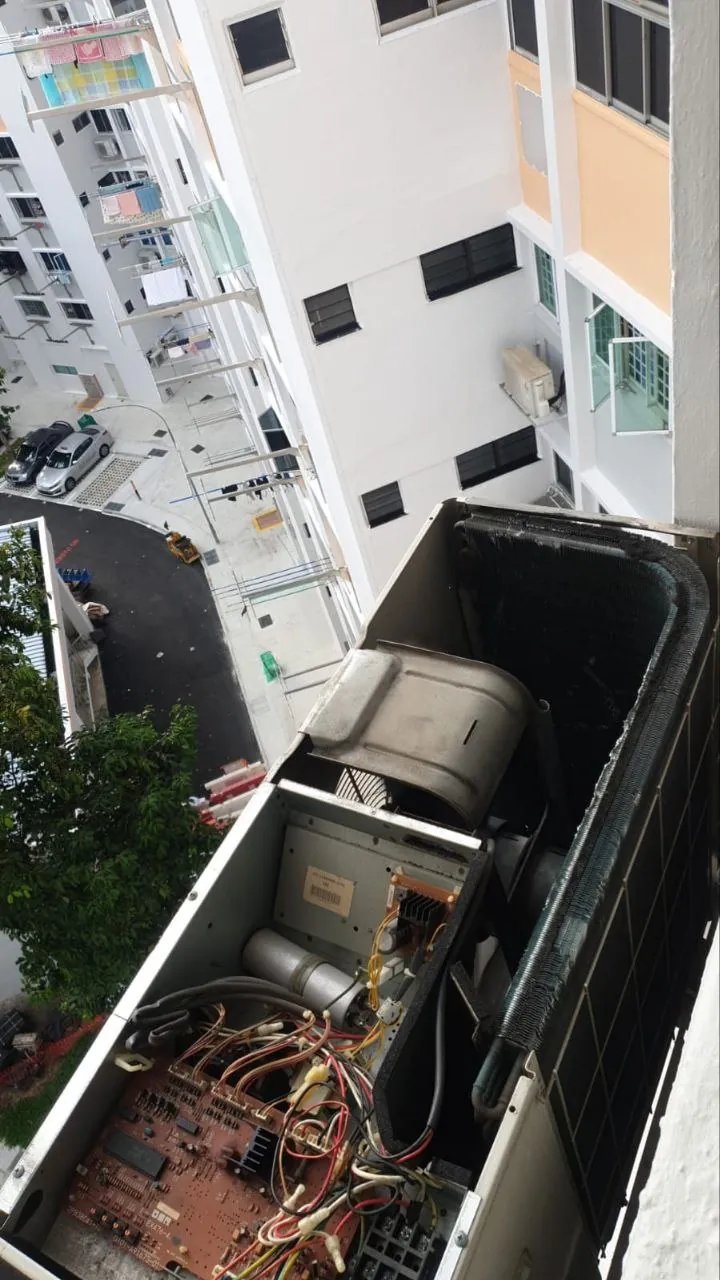

High bills with weak cooling looked like a compressor issue at first. Multiple previous service visits had checked gas levels and cleaned coils without lasting improvement. Before repeating those steps, we read the model nameplate on the outdoor unit and compared its rated capacity against the three indoor cassettes. This configuration check is the fastest way to rule out or confirm a sizing mismatch. It explained everything within minutes.

• •Three ceiling cassette indoor units, each rated 2.5 kW.
• •Outdoor unit model rated for System 2, approximately 5 kW total capacity.
• •Actual load when all three units run simultaneously: 7.5 kW.
• •Outdoor unit running at 150% of its nameplate rating continuously.

The installing contractor connected three indoor cassette units (each rated at 2.5 kW) to an outdoor unit with a total capacity of approximately 5 kW, which is a System 2 rating. The combined indoor demand of 7.5 kW exceeded the outdoor unit's nameplate capacity by fifty percent. When all three cassettes ran simultaneously, the compressor could not produce enough refrigerant flow to satisfy the load. It compensated by running continuously at maximum speed without cycling off, which is why the electricity bill climbed steadily. The cooling felt weak because the system was spreading its limited capacity across three rooms instead of the two it was designed for. The compressor itself was not failing. It was simply asked to do more than it was built to handle, every hour of every day for six years.

We explained that the compressor was still functioning. It was not failing, just overworked. The outdoor unit needed to be replaced with a properly rated System 3 model that matched the combined 7.5 kW indoor load. We provided the specific model specifications required and recommended getting quotes from two or three contractors showing the System 3 outdoor unit they would install. We also explained that no service visit, however thorough, could overcome a fifty percent capacity shortfall. The investment in the correct outdoor unit would pay back through lower monthly electricity bills and reliable cooling across all three rooms.

After the outdoor unit was replaced, cooling improved immediately and the electricity bill dropped 25% over two months. The system has been running well since.

A mismatch between indoor and outdoor unit ratings causes chronic high bills.

• •An outdoor unit rated for two rooms but connected to three will run continuously at maximum capacity because the compressor can never satisfy the combined indoor demand. This constant full-load operation is what drives the electricity bill up, the system never cycles off to rest.
• •Model nameplate ratings are the source of truth. A System 3 installation requires a System 3 outdoor unit. Ask your technician to verify the outdoor unit model rating against the number and capacity of connected indoor units. This check takes two minutes and can save years of overpaying.
• •Chronic weak cooling with high bills that persists after servicing almost always points to a capacity mismatch, not a maintenance problem. Cleaning coils and topping up gas cannot overcome a fundamental sizing shortfall, the equipment itself needs to match the load.
• •If you moved into a home with an existing multi-split system, check the outdoor unit nameplate before assuming the installation was done correctly. Sizing mismatches from cost-cutting at installation are more common than most homeowners realise.
